●快速反應,響應時間2ms，低泄漏量（小于5滴/分鐘）。
●壓力調整不穩定且不是設計為連續負荷使用。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●These cartridges exhibit very rapid response,but pressure regulation can be unstable and the valves are not designed for continuous duty applications
注:閥孔型號:Valve Cavity:C092
成型刀具 Cavity Tools:CT29-D.CT29-R
請參閱 Reference P99

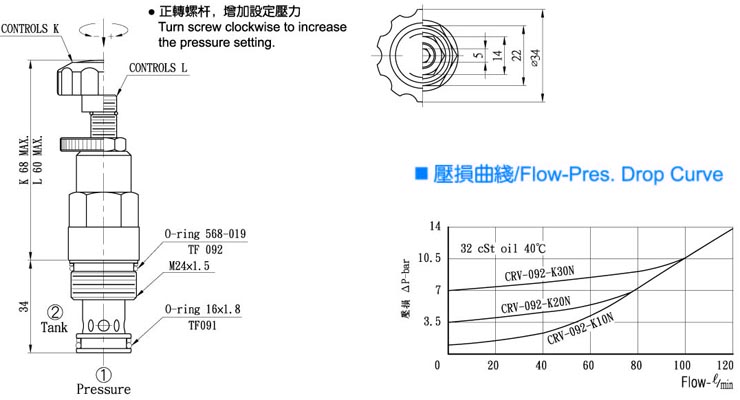

型號 Model	閥系說明 Description	額定流量 Rated Flow	最高壓力 Max.pressure	重量 Weight
CRV-092	平衡滑柱 Balanced spool 引導型 Pilot operated	100ℓ/min	315bar	K:0.19Kg L:0.15Kg

CRV	092	L	10	N
系列編號： 溢流閥 Series No. Relief Valves	閥孔型號 Cavity Size	調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj.	壓力調整范圍 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar. 30-10 to 315 bar.	油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton.
