●當作動缸直立時，協助確保下降時負荷控制；當水平回轉運動時，提供優良的加速和減速控制。
●推薦設定壓是最大感應壓的1.3倍(33~50cc/min)。
●When used with vertical actuators they help to to ensure control of the the load during lowering with horizontal rotary motion they can help provide good control of acceleration and deceleration.
●Recommended setting for counterbalanct valve is 1.3 times the maximum load induced presssure
注:閥孔型號:Valve Cavity:T17
成型刀具 Cavity Tools:CT17-D.CT17-R
請參閱 Reference P103
注：特殊選項請參照P33頁，僅有閥型T02須選項，可選用于卸載油路。
Reference page 33,Only T02 Type can be used in unloading circuit

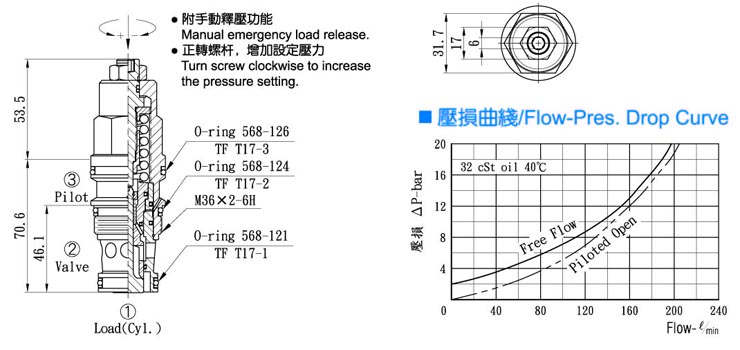

型號 Model	閥系說明 Description	額定流量 Rated Flow	最高壓力 Max.pressure	重量 Weight
CBA-T17	提動式 Poppet type 3:1導壓比 3:1pilot ratio	200ℓ/min	315bar	0.63Kg

CBA	T17	L	1R	N
系列編號： 抗衡閥 Series No. Counterbalance Valves	閥孔型號 Cavity Size	調整方式 Controls L-螺桿調整 Standard Screw Adjustment	壓力調整范圍 Adjustment Ranges. 1R-25 to 110bar 3R-70 to 300bar ● R Cracking Pres.2.0 bar 1S-25 to 110bar 3S-70 to 300bar ● S Cracking Pres.0.2 bar	油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton.
