螺紋式插裝導開閥-導壓、提動式
詳情介紹
特性/Characteristic:
●液控單向閥是非調節的開關閥僅使用負荷鎖固，因此不提供流暢的運動控制。
●允許經一單向閥自由流通由2口到1口，反流封閉直到一正比于負荷壓力在3口打開才由1口流到2口。
●Pilot to open check valves are non modulating on/off valves used for load locking only and do not provide smooth motion control.
●They allow free flow from port 2 to 1 then block reverse flow until a pilot pressure directly proportional to the load pressure is sensed at port 3 enabling a pilot a pilot piston to push the poppet off its seat.
注:閥孔型號:Valve Cavity:T02
成型刀具 Cavity Tools:CT02-D.CT02-R
請參閱 Reference P102
●允許經一單向閥自由流通由2口到1口，反流封閉直到一正比于負荷壓力在3口打開才由1口流到2口。
●Pilot to open check valves are non modulating on/off valves used for load locking only and do not provide smooth motion control.
●They allow free flow from port 2 to 1 then block reverse flow until a pilot pressure directly proportional to the load pressure is sensed at port 3 enabling a pilot a pilot piston to push the poppet off its seat.
注:閥孔型號:Valve Cavity:T02
成型刀具 Cavity Tools:CT02-D.CT02-R
請參閱 Reference P102
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CPF-T02 | 提動式 Poppet type 4:5:1導壓比 4:5:1pilot ratio |
80ℓ/min |
315bar | 0.24Kg |
選購指南/How to order:
| CPF | T02 | X | 0.2 | N |
| 系列編號： 導開閥 Series No. pilot to open Check Valves |
閥孔型號 Cavity Size |
調整方式 Controls X-標準型 Standard Type |
單向閥開閥壓 Cracking pressure 0.2-0.2 bar 2.0-2.5 bar |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

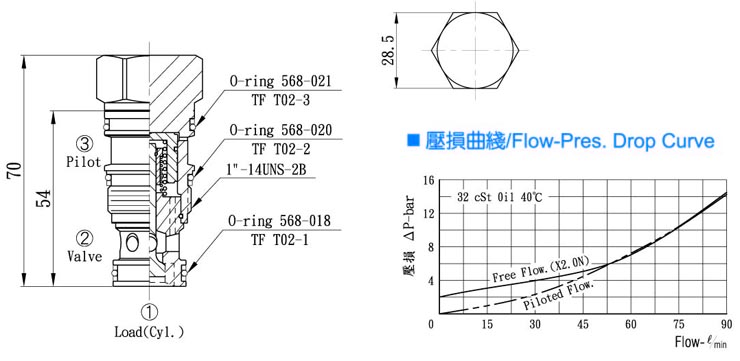

尺寸圖/Dimensions(mm)
產品型號
