●單向限流閥允許自由流在一個方向具有可調節流和在另一個方向鎖固流量。
●破裂壓力0.3-3.5bar。
●Check valve allow free flow in one derection also can be throttle flow and blocked flow in the other direction.
●Extensive range of cracking pressuress available from 0.3 to 3.5 bar.

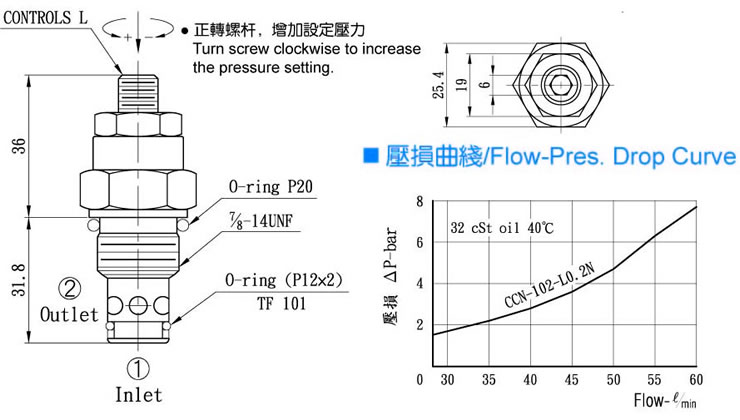

注:閥孔型號:Valve Cavity:C102
成型刀具 Cavity Tools:CT20-D.CT20-R
請參閱 Reference P92

型號 Model	閥系說明 Description	額定流量 Rated Flow	最高壓力 Max.pressure	重量 Weight
CCN-102	提動式,自動流 由閥口①至閥口② Poppet type flow from port 1 to port 2	45ℓ/min	250bar	0.15Kg

CCN	102	L	0.2	N
系列編號： 單向限流閥 Series No. Needle Check Valves	閥孔型號 Cavity Size	調整方式 Controls X-不可調整 Non-adjustable	單向閥開閥壓 Cracking pressure 0.2-0.2 bar 2.0-1.7 bar 4.0-3.7 bar	油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton.
