標準硬爪
詳情介紹
標準硬爪
規格型號：

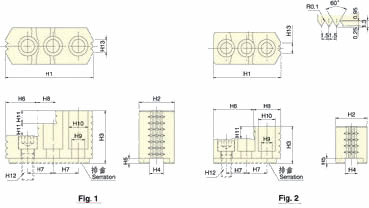

| 型式\尺寸 | H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | H-10 | H-11 | H-12 | H-13 | 適用夾頭 | 三爪重量 (kg) |
參考圖 |
| HJ05 | 53 | 23 | 28 | 10 | 4 | 30.5 | 14 | 22.5 | 13.5 | 8.5 | 10 | M8 | 6 | 3H-05 | 0.4 | Fig.2 |
| HJ06 | 67 | 31 | 35 | 12 | 5 | 40 | 20 | 26.6 | 17 | 11 | 12 | M10 | 16 | 3H-06,3P-06 | 1.0 | Fig.2 |
| HJ08 | 86 | 35 | 51 | 14 | 5 | 31 | 25 | 18 | 19 | 13 | 12 | M12 | 12 | 3H-08,3P-08 | 1.95 | Fig.1 |
| HJ10 | 101 | 40 | 54 | 16 | 5 | 43 | 30 | 17 | 19 | 13 | 13 | M12 | 15 | 3H-10,3P-10 | 2.9 | Fig.1 |
| HJ12 | 103 | 50 | 52 | 21 | 5 | 62.5 | 30 | 40.5 | 25 | 17 | 17 | M16 | 30 | 3H-12 | 2.65 | Fig.2 |
| HJ12-1 | 103 | 50 | 52 | 18 | 5 | 62.5 | 30 | 40.5 | 22 | 15 | 17 | M14 | 30 | 3P-12 | 2.7 | Fig.2 |
| HJ15 | 149 | 62 | 86 | 22 | 8 | 63 | 43 | 43 | 32 | 21 | 20 | M20 | 40 | 3H-15 | 9.4 | Fig.1 |
| HJ15-1 | 149 | 62 | 86 | 25.5 | 5 | 63 | 43 | 43 | 32 | 21 | 20 | M20 | 40 | 3P-15 | 9.5 | Fig.1 |
外觀尺寸：
| 型式\尺寸 | H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | H-10 | H-11 | H-12 | H-13 | 適用夾頭 | 三爪重量 (kg) |
參考圖 |
| HJ05 | 53 | 23 | 28 | 10 | 4 | 30.5 | 14 | 22.5 | 13.5 | 8.5 | 10 | M8 | 6 | 3H-05 | 0.4 | Fig.2 |
| HJ06 | 67 | 31 | 35 | 12 | 5 | 40 | 20 | 26.6 | 17 | 11 | 12 | M10 | 16 | 3H-06,3P-06 | 1.0 | Fig.2 |
| HJ08 | 86 | 35 | 51 | 14 | 5 | 31 | 25 | 18 | 19 | 13 | 12 | M12 | 12 | 3H-08,3P-08 | 1.95 | Fig.1 |
| HJ10 | 101 | 40 | 54 | 16 | 5 | 43 | 30 | 17 | 19 | 13 | 13 | M12 | 15 | 3H-10,3P-10 | 2.9 | Fig.1 |
| HJ12 | 103 | 50 | 52 | 21 | 5 | 62.5 | 30 | 40.5 | 25 | 17 | 17 | M16 | 30 | 3H-12 | 2.65 | Fig.2 |
| HJ12-1 | 103 | 50 | 52 | 18 | 5 | 62.5 | 30 | 40.5 | 22 | 15 | 17 | M14 | 30 | 3P-12 | 2.7 | Fig.2 |
| HJ15 | 149 | 62 | 86 | 22 | 8 | 63 | 43 | 43 | 32 | 21 | 20 | M20 | 40 | 3H-15 | 9.4 | Fig.1 |
| HJ15-1 | 149 | 62 | 86 | 25.5 | 5 | 63 | 43 | 43 | 32 | 21 | 20 | M20 | 40 | 3P-15 | 9.5 | Fig.1 |
產品型號
